Gas Compressor Packages

Solar builds complete gas compressor packages that are ready to go to work in all gas compression and transmission applications, no matter where the job is. Solar designs and manufactures every turbomachinery package using quality and safety systems recognized worldwide as standards of excellence.

Learn how Solar offers a variety of turbine ratings to fit your needs.

Read how we use the latest technology to maximize flexibility and value for compression to provide reliability and low life-cycle costs.

Download Brochure

Gas Compressor Packages

of

Models

Units:

US
Metric

1 - of Results

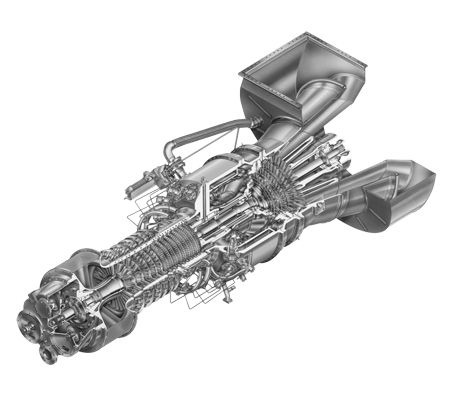

Titan 350 - 52,500 hp

Titan 350 - 52,500 hp

Power: 52,500 hp 39,000 kW
Heat Rate: 6200 Btu/hp-hr 8780 kJ/kW-hr
Exhaust Flow: 855,000 lb/hr 387,820 kg/hr
Exhaust Temperature: 910ºF 490ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Titan 350 - 47,000 hp

Titan 350 - 47,000 hp

Power: 47,000 hp 35,000 kW
Heat Rate: 6250 Btu/hp-hr 8845 kJ/kW-hr
Exhaust Flow: 820,080 lb/hr 371,980 kg/hr
Exhaust Temperature: 860ºF 460ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Titan 250

Titan 250

Power: 31,900 hp 23,790 kW
Heat Rate: 6275 Btu/hp-hr 8880 kJ/kW-hr
Exhaust Flow: 541,590 lb/hr 245,660 kg/hr
Exhaust Temperature: 865ºF 465ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Titan 130

Titan 130

Power: 23,470 hp 17,500 kW
Heat Rate: 6800 Btu/hp-hr 9620 kJ/kW-hr
Exhaust Flow: 452,830 lb/hr 205,400 kg/hr
Exhaust Temperature: 895º F 480º C
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Mars 100

Mars 100

Power: 15,900 hp 11,860 kW
Heat Rate: 7395 Btu/hp-hr 10,465 kJ/kW-hr
Exhaust Flow: 337,850 lb/hr 153,245 kg/hr
Exhaust Temperature: 905ºF 485ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Mars 90

Mars 90

Power: 13,220 hp 9860 kW
Heat Rate: 7655 Btu/hp-hr 10,830 kJ/kW-hr
Exhaust Flow: 318,755 lb/hr 144,585 kg/hr
Exhaust Temperature: 870ºF 465ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Taurus 70

Taurus 70

Power: 11,110 hp 8290 kW
Heat Rate: 7190 Btu/hp-hr 10,170 kJ/kW-hr
Exhaust Flow: 215,990 lb/hr 97,970 kg/hr
Exhaust Temperature: 935ºF 500ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Taurus 60

Taurus 60

Power: 7700 hp 5740 kW
Heat Rate: 7965 Btu/hp-hr 11,265 kJ/kW-hr
Exhaust Flow: 171,690 lb/hr 77,880 kg/hr
Exhaust Temperature: 950ºF 510ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Centaur 50

Centaur 50

Power: 6130 hp 4570 kW
Heat Rate: 8500 Btu/hp-hr 12,030 kJ/kW-hr
Exhaust Flow: 149,380 lb/hr 67,760 kg/hr
Exhaust Temperature: 960ºF 515ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Centaur 40

Centaur 40

Power: 4700 hp 3500 kW
Heat Rate: 9125 Btu/hp-hr 12,905 kJ/kW-hr
Exhaust Flow: 150,320 lb/hr 68,185 kg/hr
Exhaust Temperature: 835ºF 450ºC
Combustion System: SoLoNOx (DLE) Conventional SoLoNOx (DLE) Conventional

Saturn 20

Saturn 20

Power: 1590 hp 1185 kW
Heat Rate: 10,370 Btu/hp-hr 14,670 kJ/kW-hr
Exhaust Flow: 51,615 lb/hr 23,410 kg/hr
Exhaust Temperature: 970ºF 520ºC
Combustion System: Conventional Conventional

Gas Compressor Calculator

Discover our solutions for your compression needs by applying your process conditions to our sizing tool.
